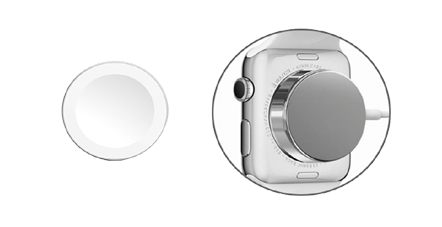

Model number : QT-A100 ( Magnetic Charging )5W
Apple Watch Wireless Charging Transmitter (Tx) Module
Specification:
Input Voltage : DC5V , 1A
Output Voltage : DC5V , 0.5A
Charging Efficiency : **% (max)
Standard : Apple
Module Dimension : Diameter 32 mm , High 8.5 mm
**Project development needs submit Apple approved

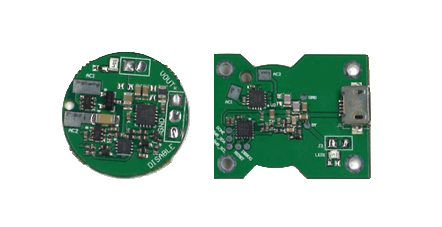

Model number : QT-S1507/QR-S1506
Wearable wireless charging (Tx+Rx) module
Specification:
Input Voltage : DC5V , 0.5A
Output Voltage : DC5V , 0.2A
Charging Efficiency : 65% (max)
Standard : Non standard
QT-S1507 PCBA Dimension (L)21.1*(W)8.9*(H)3.7mm
Coil Dimension 18.5mm (diameter), 1mm(height)
QR-S1506 PCBA Dimension (L)17.0*(W)12.0*(H)3.0mm
Coil Dimension 18.5mm (diameter), 1mm(height)

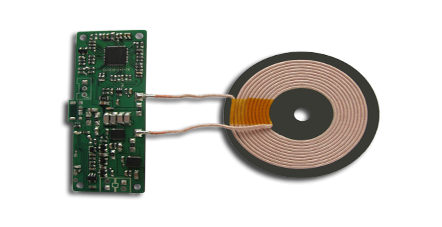

Model number : QT-T1505 (Qi-certified product)
5V Single Coil Qi Wireless Charging Transmitter (Tx) Module (5W)
Ti Solution , WPC 1.1 , Support FOD.
Specification:
Input Voltage : DC5V , 1.5A
Output Voltage : DC5V , 1A
Charging Efficiency : 75% (max)
Standard : Qi compatible
PCBA Dimension : 64 x 24 x 3.1mm
Coil Dimension : Diameter 50 mm , High 3mm
Model number : QT-A1506 ( Qi / PMA ) 10 W
Support Single Coil Dual-Mode Qi / PMA Wireless Charging Transmitter (Tx) Module (10W) ,
Support FOD.
Support Samsung Galaxy Quick Charge
Specification:
Input Voltage : DC19V , 1A
Output Voltage : DC5V , 2A
Charging Efficiency : 75% (max)
Standard : Qi / PMA compatible
PCBA Dimension : 64 x 24 x 3.1mm
Coil Dimension : Diameter 50 mm , High 3mm
Model number : QT-A1507 ( Qi / PMA ) 5W
5V Single Coil Dual-Mode Qi / PMA Wireless Charging Transmitter (Tx) Module (5W) , Support FOD.
Specification:
Input Voltage : DC12V , 1A
Output Voltage : DC5V , 1A
Charging Efficiency : 75% (max)
Standard : Qi compatible
PCBA Dimension : 62 x 24 x 3.1mm
Coil Dimension : Diameter 50 mm , High 3mm

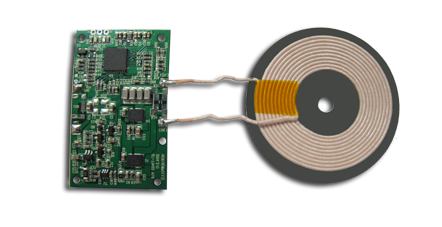

Model number : QT-T1403
5V Single Coil Qi Wireless Charging Transmitter (Tx) Module (5W)
Ti Solution , WPC 1.1 , Support FOD.
Specification:
Input Voltage : DC5V , 1.5A
Output Voltage : DC5V , 1A
Charging Efficiency : 75% (max)
Standard : Qi compatible
PCBA Dimension : 50 x 30 x 3.1mm
Coil Dimension : Diameter 50 mm , High 3mm
Model number : QT-A1508 20W Production 3Q15
19V Single Coil Wireless Charging Transmitter (Tx) Module (20W)Support FOD.
Specification:
Input Voltage : DC32V , 1.5A
Output Voltage : DC21V , 1A
Charging Efficiency : 75% (max)
PCBA Dimension : 50 x 30 x 3.1mm
Coil Dimension : Diameter 50 mm , High 3mm

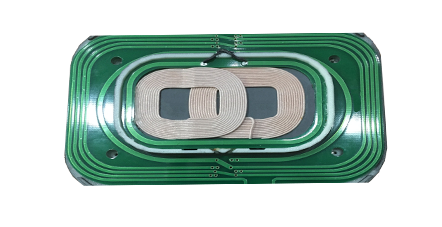

Model number : QT-A1509 ( Qi / PMA / A4WP ) Production 4Q15
19V Tri-Mode Wireless Charging Transmitter (Tx) Module Support FOD.
Specification:
Input Voltage : DC 19V , 1A
QI/PMA Model Output Voltage : DC 5V , 2A
A4WP Output Voltage : DC 5V , 1A
Charging Efficiency : 75% (max)
Standard : Qi / PMA / A4WP compatible
PCBA Dimension : ?? x ?? x ?? mm
Coil Dimension : Diameter ?? mm , High ?? mm
Model number : QR-T1406 ( Qi / PMA ) 10W
Dual-Mode Qi / PMA Wireless Charging Receiver (Rx) Module
Specification:
Output : DC5V , 2A(max)
Charging Efficiency : 75% (max)
Standard : Qi / PMA compatible
PCBA Dimension : 30 x 18 x 1.8 mm
Coil Dimension : 48 x 32 x 1.1 mm

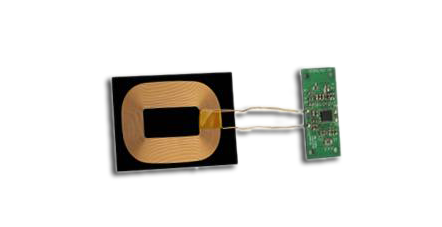

Model number : QR-T1405
Qi Wireless Charging Receiver (Rx) Module
Specification:
Output : DC5V , 1A(max)
Charging Efficiency : 75% (max)
Standard : Qi compatible
PCBA Dimension : 32 x 15 x 1.8 mm
Coil Dimension : 48 x 32 x 1.1 mm
